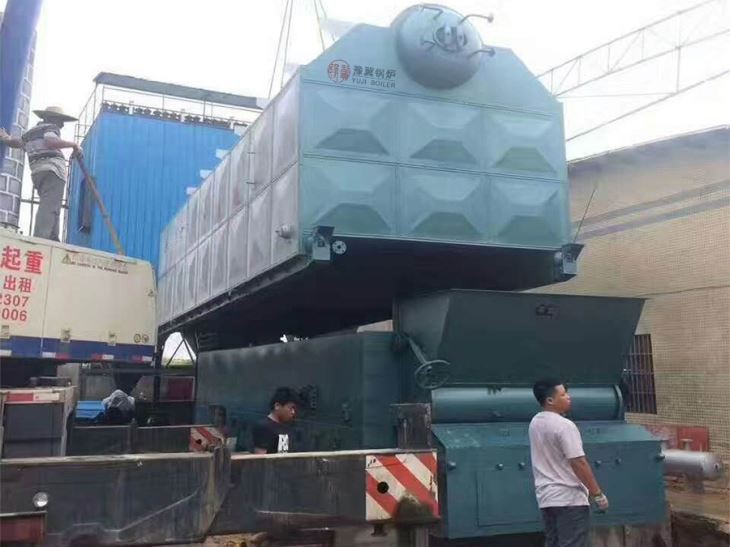

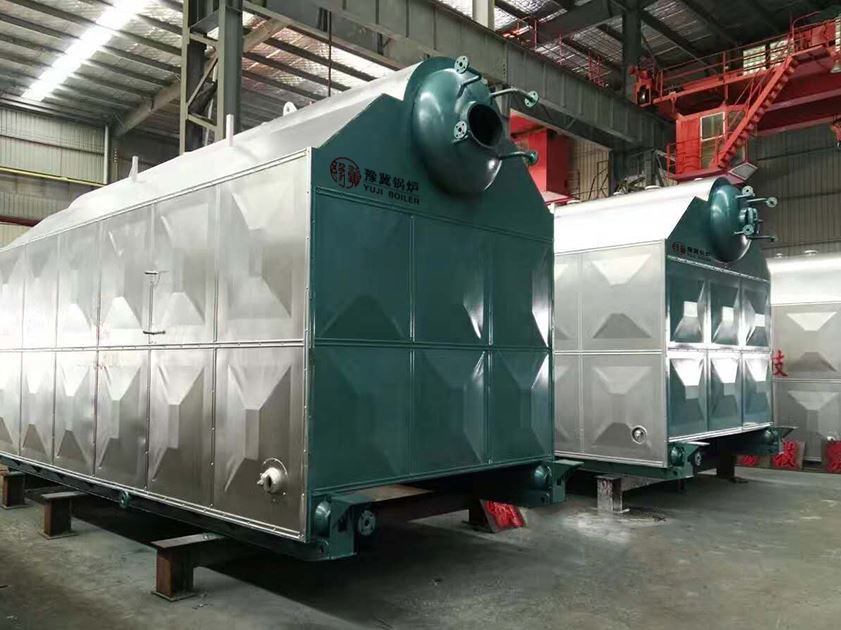

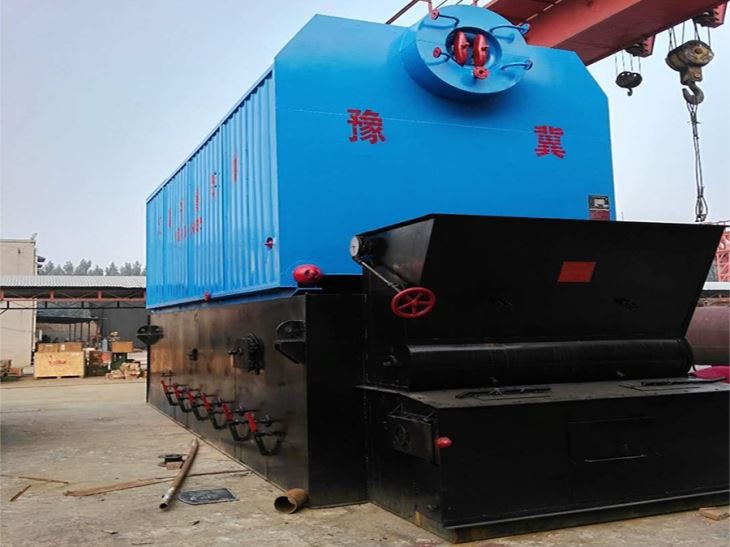

SZL dlo tib chabon cho Boiler

SZL dlo tib chabon dife cho boiler dlo
Model: SZL Seri
Rated Pouvwa: 1.4MW-14MW
Steam Presyon: 0.7Mpa-2.5Mpa (Si ou vle jan sa nesese)
Tanperati vape: 0 ° C - 226 ° C
Gaz: Chabon, Anthracite, Bituminous Coal, Lignite, elatriye

Pwodwi Entwodiksyon

Entwodiksyon

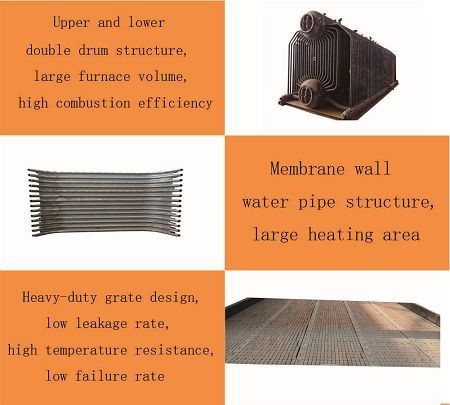

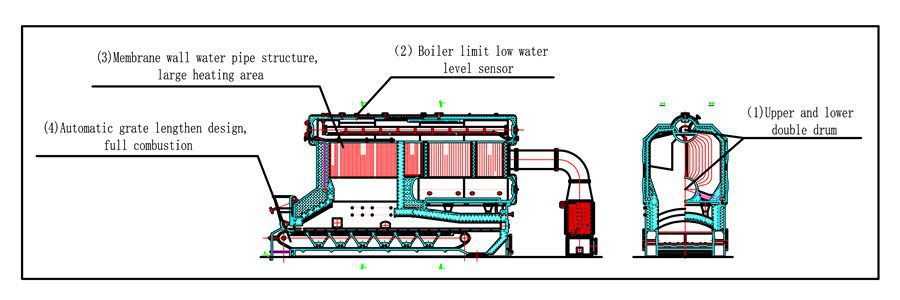

SZL seri boiler komesyal vape se doub estrikti tiyo dlo doub, gwo volim founiti, apwopriye pou dives kalite gaz chabon, segonde efikasite konbinezon, pri ki ba, pwoteksyon anviwonman ak ekonomize eneji. Vape dlo a vape tou de bo bo klou yo te ranje ak konpletman sele manbran dlo dlo, ogmante zon nan absorption chale ak segonde efikasite temik. Konsepsyon an ak pefomans te rive nan nivo a ki mennen nan estanda nasyonal, ak estrikti rezonab, transpo pratik ak enstalasyon, ak segonde efikasite.

tablo

Teknoloji paramte

Model	Rated pouvwa (mw)	Presyon rated (Mpa)	Efikasite temik (%)	konsomasyon gaz (kg/h)	Tantativ pou dlo ekipman. (°C)	Retounen dlo tant. (°C)
SZL1.4-1.0/95/70-Aii	1.4	1.0	≥83	300	95	70
SZL2.8-1.0 / 95 / 70-AII	2.8	1.0	≥83	590	95	70
SZL4.2-1.0/95/70-Aii	4.2	1.0	≥83	880	95	70
SZL5.6-1.0/95/70-Aii	5.6	1.0	≥83	1160	95	70
SZL7-1.0/95/70-Aii	7	1.0	≥83	1450	95	70
SZL10.5-1.0/95/70-Aii	10.5	1.0	≥83	2200	115	70
SZL14-0.7/95/70-Aii	14	1.0	≥83	1160	115	70
